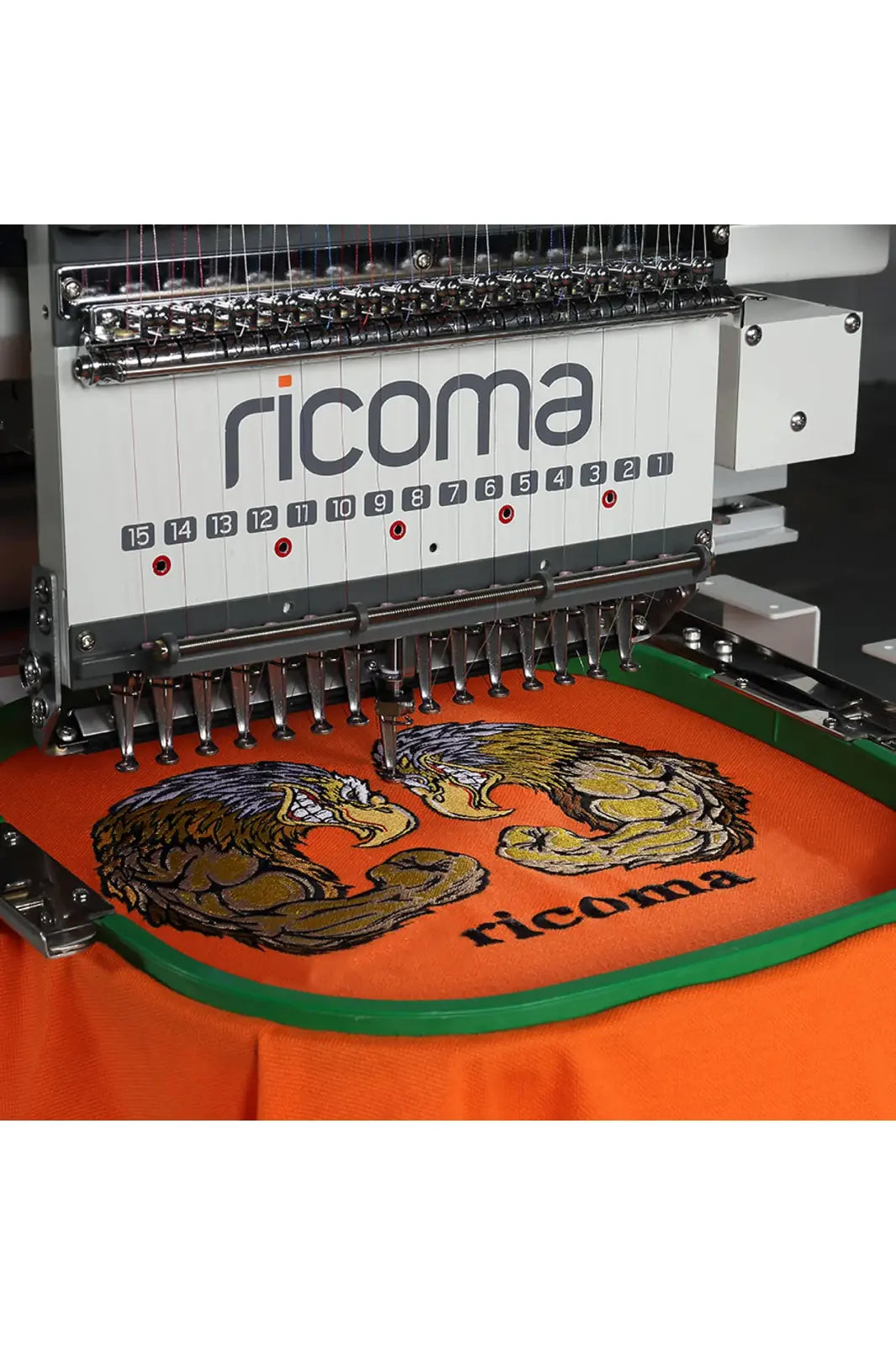

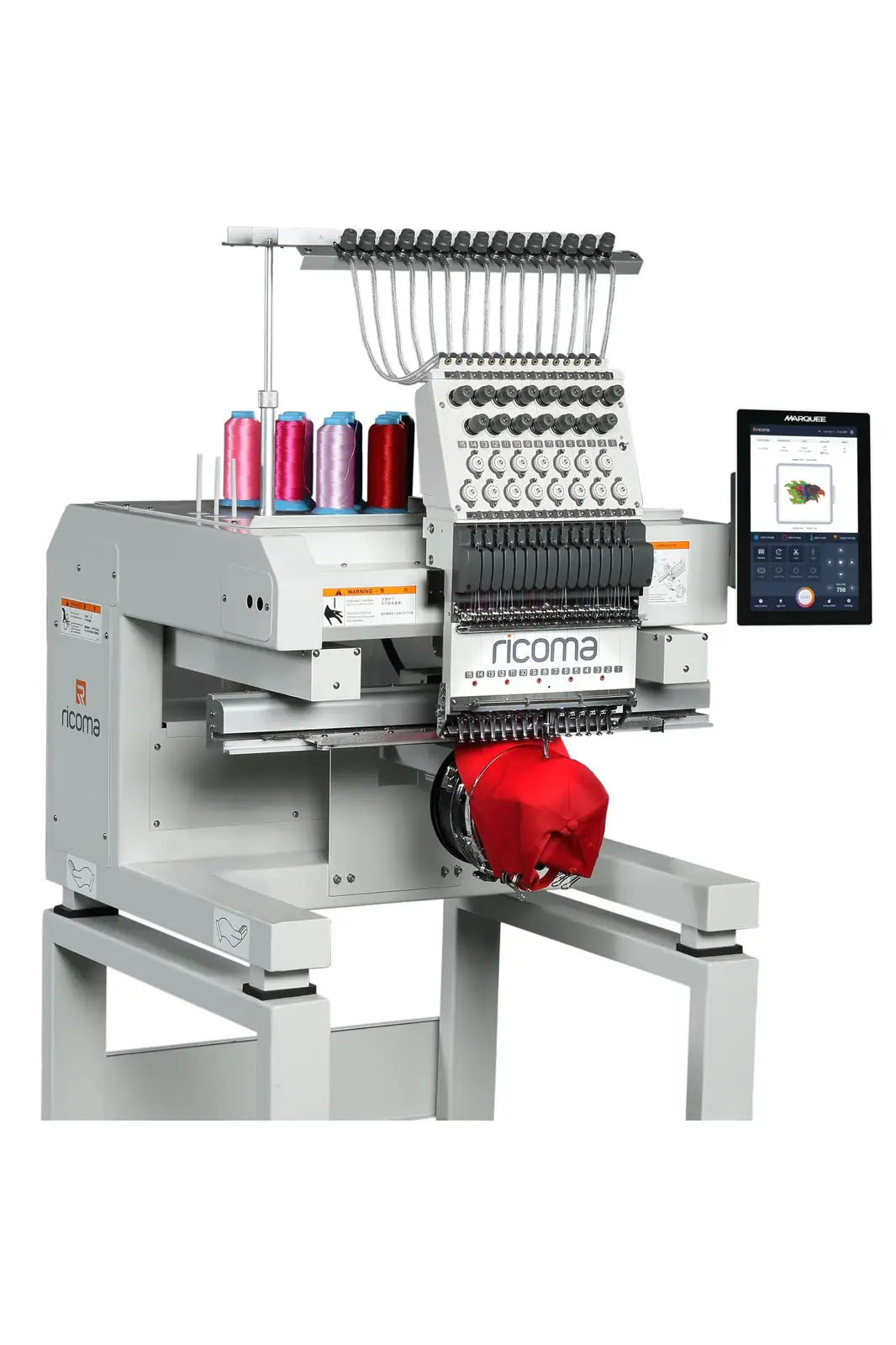

The Marquee 15-needle embroidery machine is the pinnacle of custom apparel innovation. It features one of the largest clearance areas in the industry, so you can easily expand your company's product offerings to include bulky, oversized items like bags, jackets, and more. Best of all, the Marquee features the industry's first fully responsive 10.1-inch high-definition touchscreen panel.

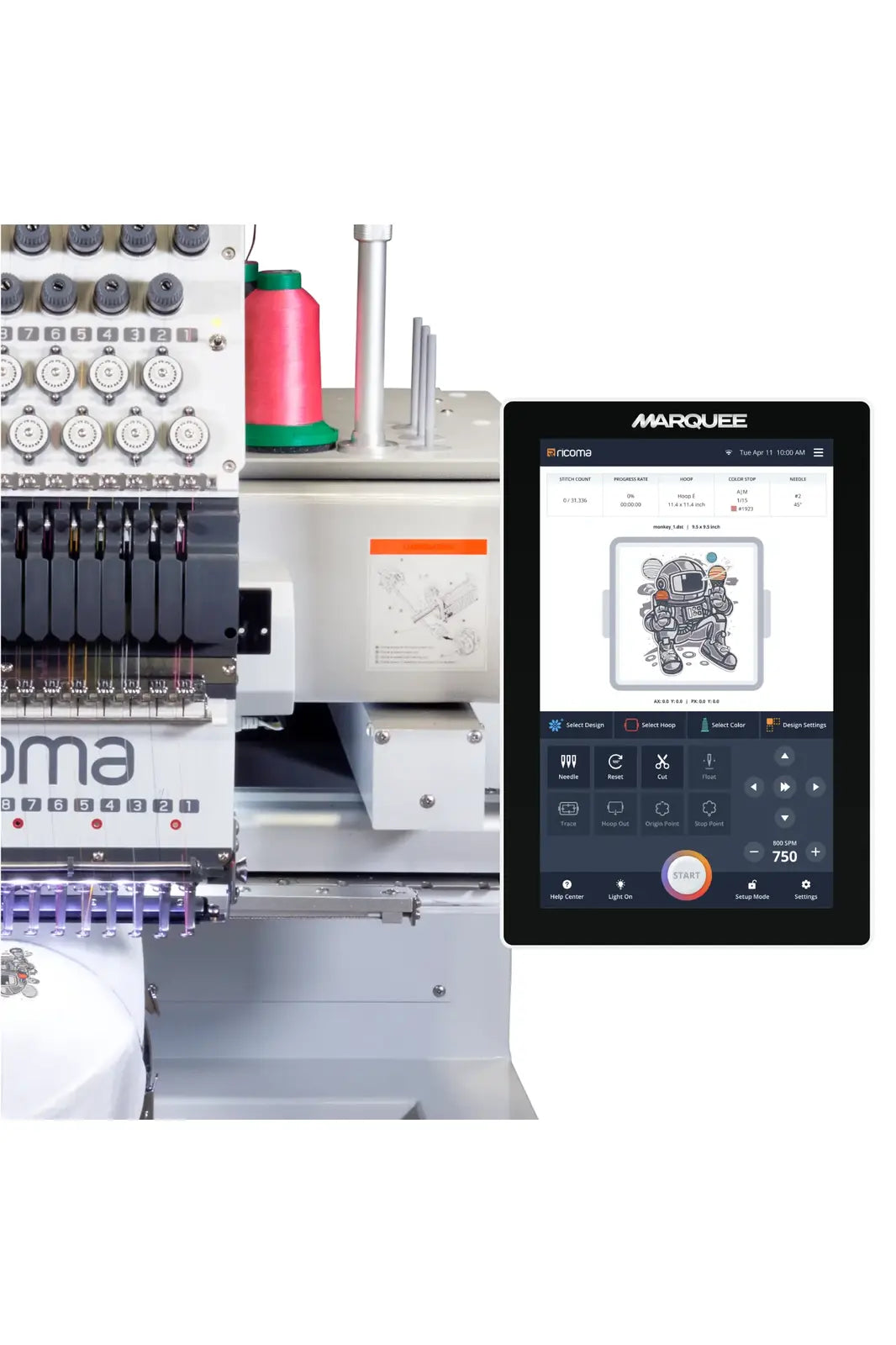

The most intuitive and user-friendly control panel in the industry
Large memory capacity of 100 million stitches or 1,000 designs with a maximum of 1,000 color changes
The first and only fully responsive touchscreen panel
The spacious 10.1-inch display offers better visibility and enough space for additional functions
Reads multiple design formats such as DST, DSB, TBF and more
Transfer designs via USB, Chroma or directly from the unique URL in your design portal
Automatic software updates via WLAN
Make changes to existing designs and save them as a new file for later use
Combine multiple designs to create and save them as a single design file without having to use your digitizing software
Duplicate, resize and mirror your design to save it as a new design
Easily access 24 different fonts to create custom words and phrases
Large selection of yarn colors for yarn color matching
For quick identification, you can assign color codes to yarn color options
Three different color change modes for more efficient embroidery: automatic, automatic-manual and manual
Displays the color sequence on the same page when the color stops, allowing you to change colors effortlessly
Provides a high-resolution, realistic view of what the design will look like
Add a background to your embroidery hoop to mimic the material you are using for a realistic view.
The hoop offset makes it easy to add appliqués. Sew fabric to your garment without having to reach under the needle
The design sketch allows you to trace the pattern to make sure the needle does not touch the embroidery frame.
Easily select preset frame parameters to match the frames included in your machine, or add custom frame parameters to adapt to additional frame sizes
Built-in warning that lets you know when the design is too large for the embroidery hoop
Thread cutter function: Program the thread cutter to activate at certain stops during embroidery, or perform a manual cut when needed.
An optional laser tracing device is available to help you see where the design should be embroidered
Organize and rename designs with an integrated file management system
The design file management system has a search bar for easy finding and sorting of files
With the screen saver function you can adjust the screen saver time, image and display brightness
Supports switching between metric and imperial units
Choose between the light mode and dark mode settings as desired
Easily access the integrated help center and tooltip function
Automatic reminders for machine maintenance weekly, monthly and annually
Built-in screenshot feature to assist technical support
Set different alarm tones in the unlikely event of a machine problem
Run tests to make sure your computer, encoder and main shaft are working properly.
Export your system log for quick diagnosis
Supports multiple languages: English, Chinese, Spanish
Adjust the needle bar depth with the 172 degree button and the timing with the 196 or 201 degree button
Duplicate previously saved settings on a new computer or restore the settings back to your current computer

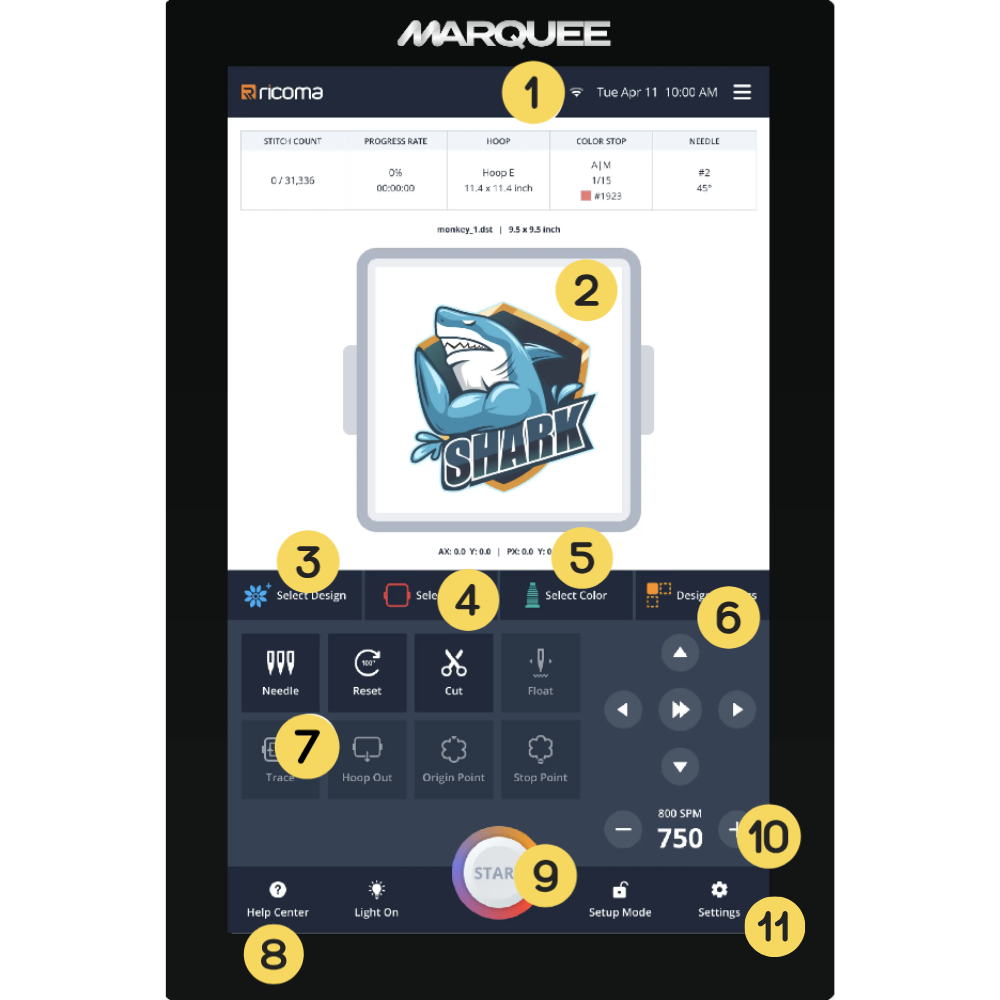

1. Wifi Capabilities
Connect to the internet to wirelessly send digitized files from your digitizing software to your panel and to receive any software updates.
2. Design Preview
In the preview screen, you can see the design you're embroidering and change the background of your embroidery hoop on the panel to mimic the material you're embroidering on for a realistic view of how the design will look on the material.
3. Select Design
With an improved memory capacity of up to 100 million stitches or 1,000 designs, you can store more designs than ever before.
4. Select Hoop
Hoop selection has never been easier. In just a few simple steps, you can pre-program custom hoop sizes and dimensions onto the panel to ensure you always have the right parameters for whatever hoop you're using.
5. Select Colour
Access color sequences on the same page as the color stops so that you can effortlessly change colors. You can also achieve precise color matching by using the color codes from the spool to set your machine's thread colors to match those on your panel.
6. Design Settings
Easily adjust the settings of your design by resizing, duplicating, flipping and more. Then, you can save the design as a separate file for future use.
7. Design Tracing
Effortlessly trace the outline of your chosen design to ensure the machine's needle doesn't come into contact with the hoop frame.
8. Help Center
To help you navigate the various functions, the panel comes with a help center and a built-in tool's tips function, which explains each tool and option on the screen.
9. Start/Stop Button
Use this button to start or stop the embroidery process. If you need to stop embroidering at any time during the process, click the button to make the machine stop.
10. Speed
Identify the maximum speed of your embroidery machine and adjust your current stitches per second (SPM) to align with the project you're working on.
11. Machine Settings
Under settings, you can change display brightness, language, alert sounds, and more. You can also adjust and save these machine settings for future use on a new machine or restore your machine back to its current settings at any time.
If you can hoop it, you can embroider it. Check out just some of the many projects created with the Marquee 1501 embroidery machine.
Marquee 1501
15
13
1
20 Million Stitches or 200 Designs Memory Capacity
High-Definition True-Color 10.1’’ Touchscreen
500 x 360 mm (19.7 x 14.2 in)
1200 sti/min
830mm L x 770mm W x 780mm H (32.7in L x 30.3in W x 30.7in H) - without stand
145 kgs (319.7 lbs)
210 kg (463 lbs)
Marquee 1501
15
13
1
20 Million Stitches or 200 Designs Memory Capacity
High-Definition True-Color 10.1’’ Touchscreen
500 x 360 mm (19.7 x 14.2 in)
1200 sti/min
830mm L x 770mm W x 780mm H (32.7in L x 30.3in W x 30.7in H) - without stand
145 kgs (319.7 lbs)
210 kg (463 lbs)
