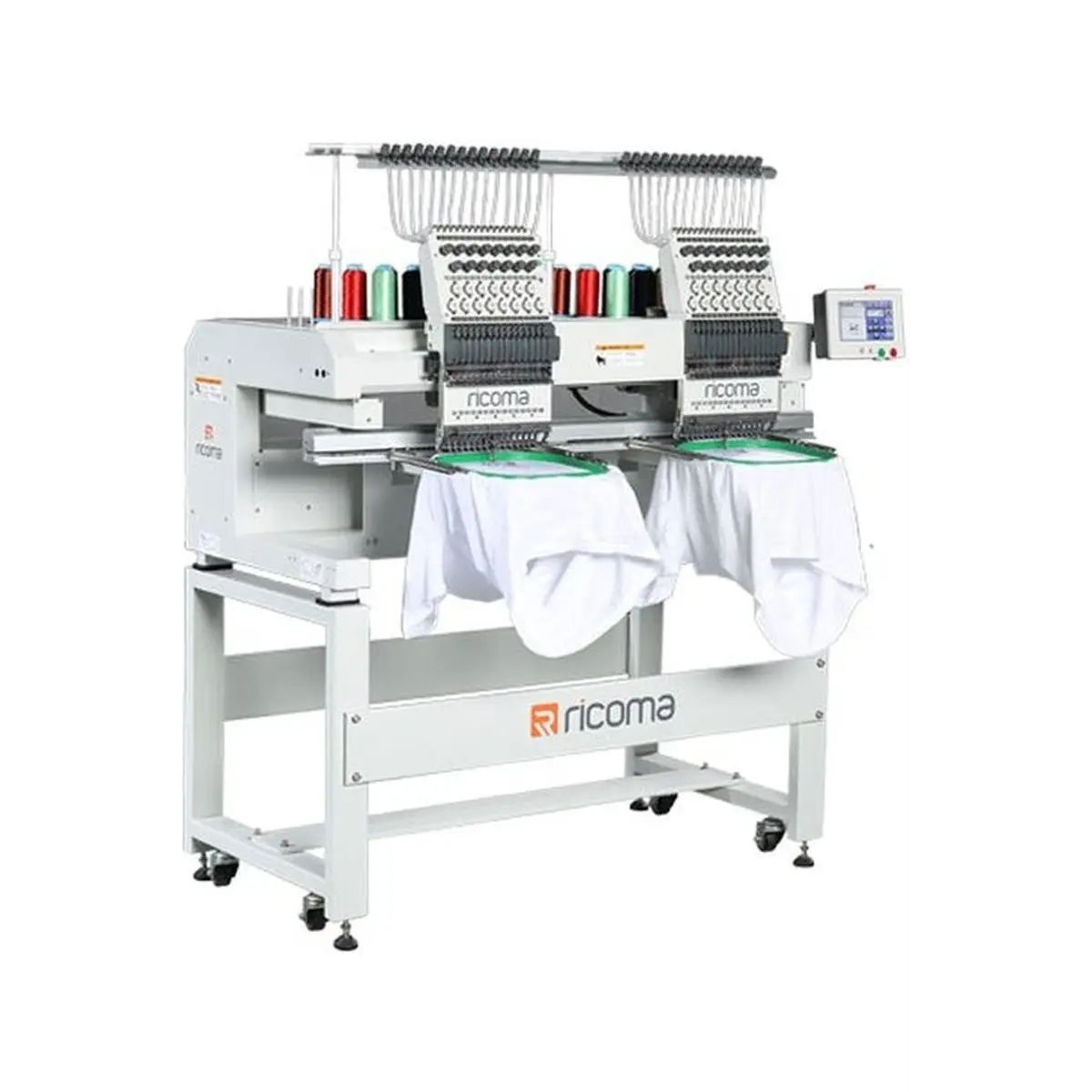

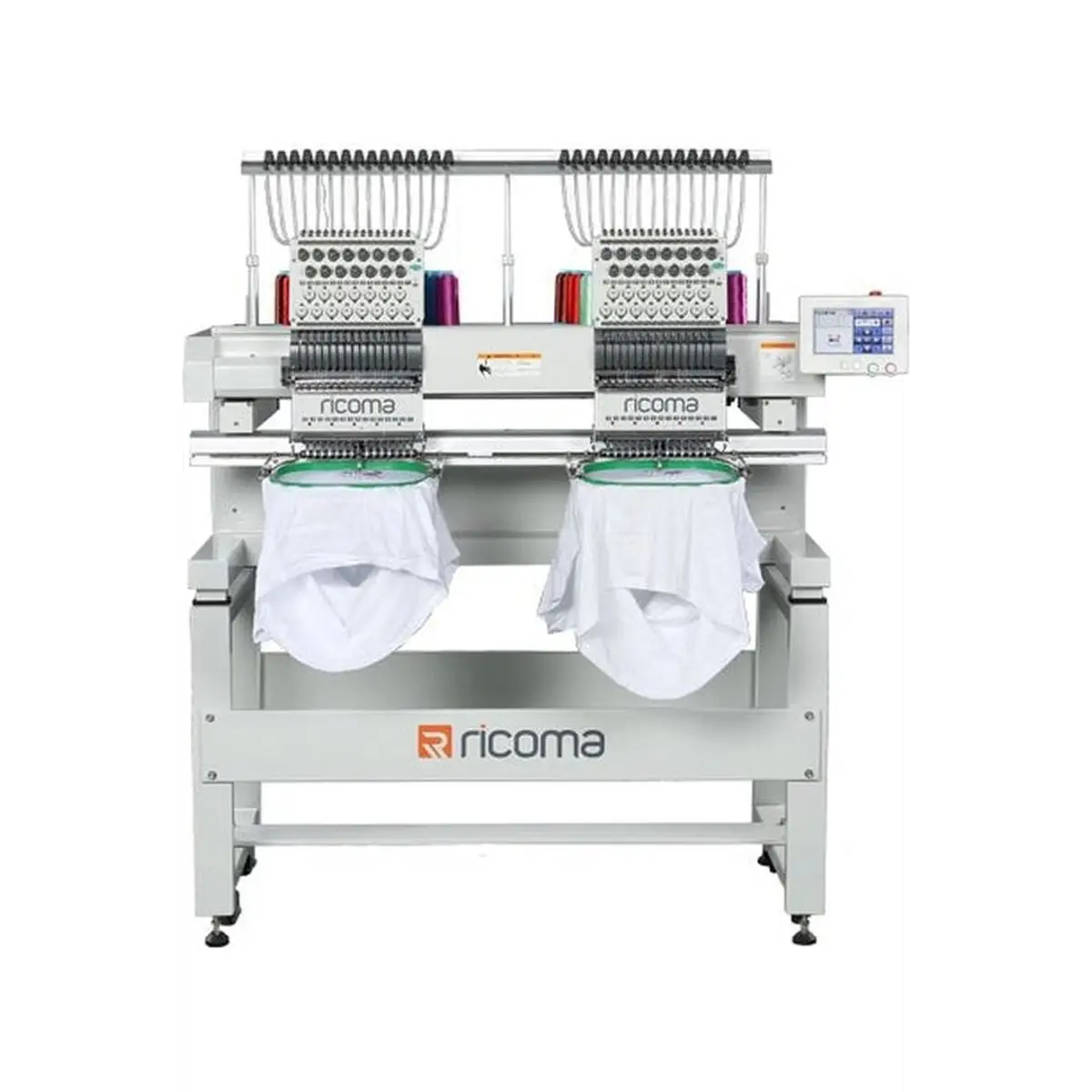

Suitable for embroidery on flats, caps, finished garments and more!
Perfect for small and established businesses alike
2 head models allow for mass production
High-Definition True-Color 7-inch LCD Touch Screen
Large memory capacity: 20 million stitches or 200 designs
Machine reads multiple design formats such as DST, DSB and more

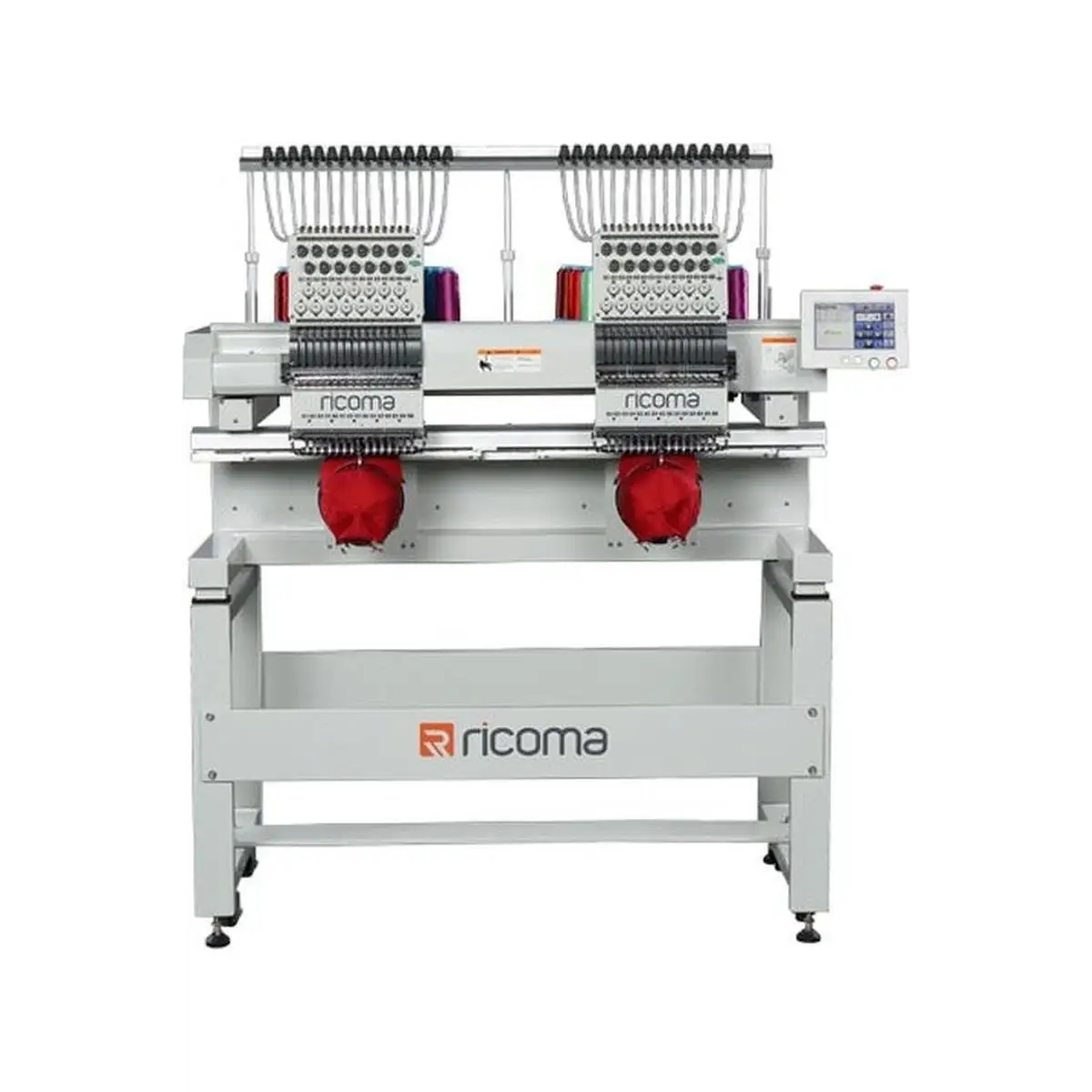

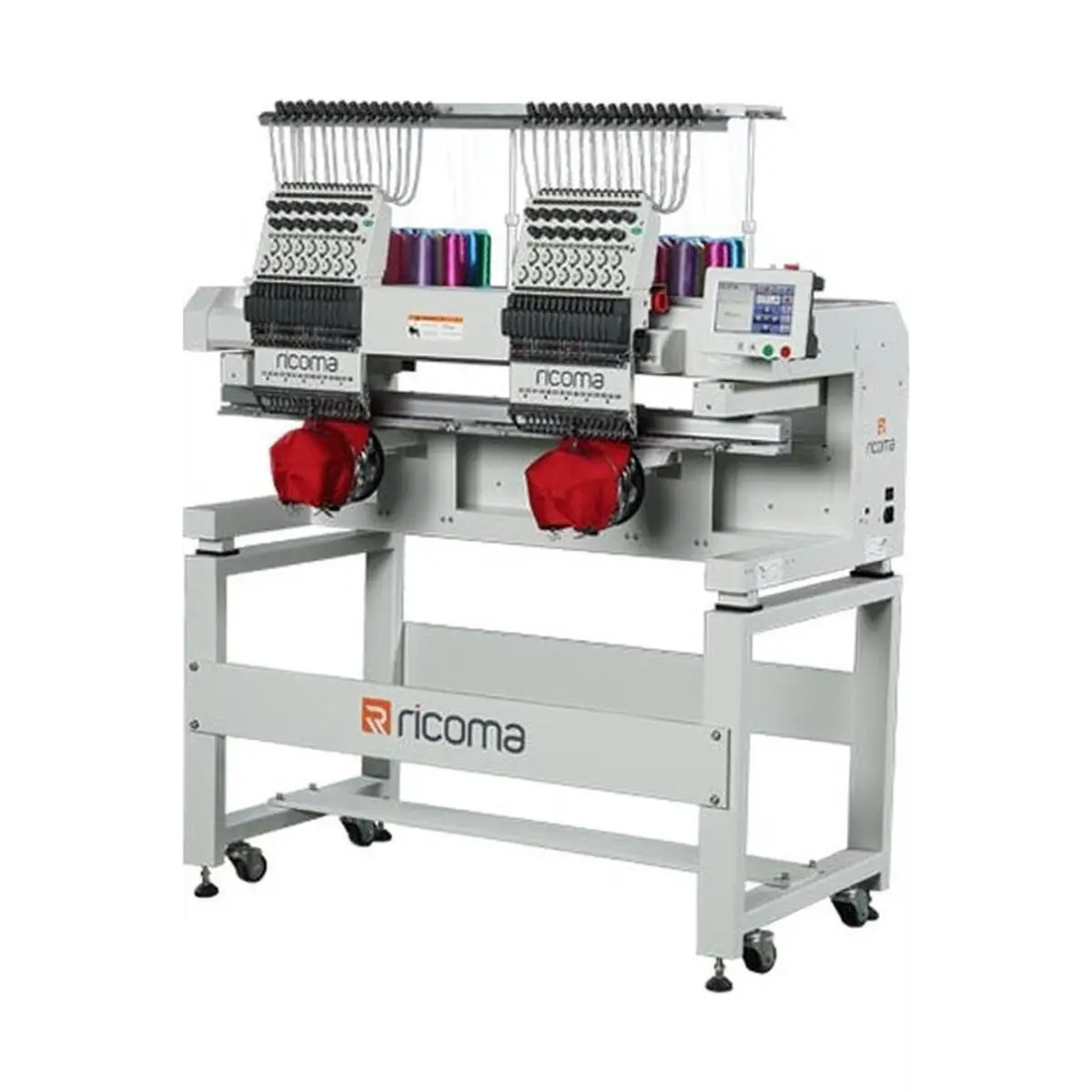

270° wide angle cap system
Smaller sewing arm greatly improves the performance of cap embroidery and embroidery on small items
Multiple languages: English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, German, Russian, Vietnamese, Thai, Arabic,Italian, Czech, Polish and more
Servo motor 150W – lowest power consumption in the industry!
Environmentally friendly packaging
Heavy duty steel stand with wheels to ensure both stability and mobility
Multiple hoop sizes for a variety of embroidery needs
Wide overhead arm system for easy embroidery on bulky items
Automatic color change
Automatic thread trimmer
External 100° button and trimming button
Reinforced upper thread clamp to ensure stable trimming
Thread break detection
Networkable. USB input or direct transmission from PC via LAN port
Built-in universal power supply, 110V/60Hz and 220V/50Hz self-adaptable worldwide
DC36V micro-step motor for X & Y axis driving to ensure low noise and less vibration
Front LED lamp provides better visibility and protection for eyes against strong light during threading
Design transfer from Chroma software to 7S panel with ethernet cable
Easily add appliqué, sequin, boring or cording
Automatic memory retention
One-step tracing button on home screen
Adjustable control panel positioning for better visibility and comfort
Built-in button from 172° to 196° under manual color change mode, a great help for machine maintenance
Recessed USB port to protect USB flash drive
Emergency stop button
Compatible with optional laser tracing device
Double LED lights for a wider field of view
Perfect for mass production of patches
Slim machine width allows for easy entry through standard sized doors

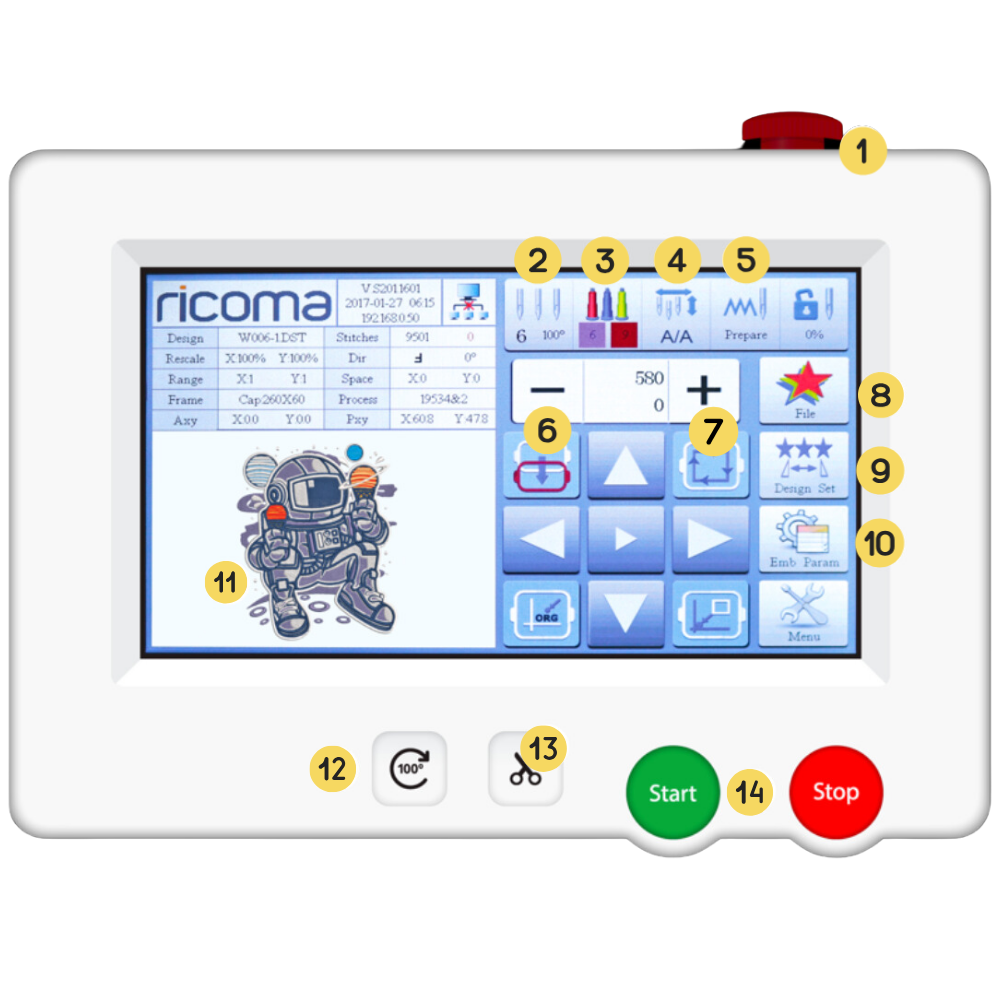

1. Emergency Stop Button
In case of an emergency, press the emergency stop button located on top right side of the panel and rotate clockwise. This will stop the machine.
2. Needle Icon
Manually switch needles with the needle icon. This icon also displays the current needle position and degree settings on the machine. The left side displays the current needle position and the right side displays the degree the machine is aligned to.
3. Colour Sequence
Select your design’s colors with the color sequence menu. The number to the left displays the current needle position while the second displays the upcoming needle/color.
4. Working Mode/Colour Change Mode Key
This key sets your machine to automatically or manually change to the next colour stop.
5. Message Key/Floating Key
Fast forward and rewind through designs with the floating mode key. This key also displays which status the machine is on, whether it’s preparing, working or waiting.
6. Frame Out Key
The frame out key brings your hoop forward during the embroidery process for simple one-step appliqué.
7. Trace Design Key
Use this key to trace the design’s start and end point. This will help you select your design’s placement and determine if your needle will come into contact with the hoop at any point during the embroidery process.
8. Design Import/Export
This key is used to select, display, import and delete designs in the machine’s memory.
9. Design Settings Menu
Select preset hoops, repeat designs and edit settings like size and rotation angle with the design settings menu.
10. Embroidery Paramters Key
Select this key to adjust the machine's parameters.
11. Design Preview
In this small preview screen, you can see the design you're embroidering and how far along you are in the embroidery process.
12. 100 Degree Key
This key automates the process of aligning the machine to 100 degrees. In order to use the machine, it must be aligned to 100 degrees.
13. Manual Trimming Key
Use this key to perform trimming during operation status and preparation status.
14. Start/Stop Button
Use these buttons to start or stop the embroidery process. If you need to stop embroidering at any time during the process, click the Stop button to make the machine stop.
If you can hoop it, you can embroider it. Check out just some of the many projects created with the MT-1502-7S embroidery machine.
1. Hoop A Round (x4): 90 x 90 mm (3.5 x 3.5 in)
2. Hoop B Round (x4): 120 x 120 mm (4.7 x 4.7 in)
3. Hoop C Round (x4): 150 x 150 mm (5.9 x 5.9 in)
4. Hoop D Round (x4): 190 x 190 mm (7.5 x 7.5 in)
5. Hoop E Square (x4): 290 x 290 mm (11.4 x 11.4 in)
6. Hoop F Oval (x4): 540 x 360 mm (21.3 x 14.2 in)

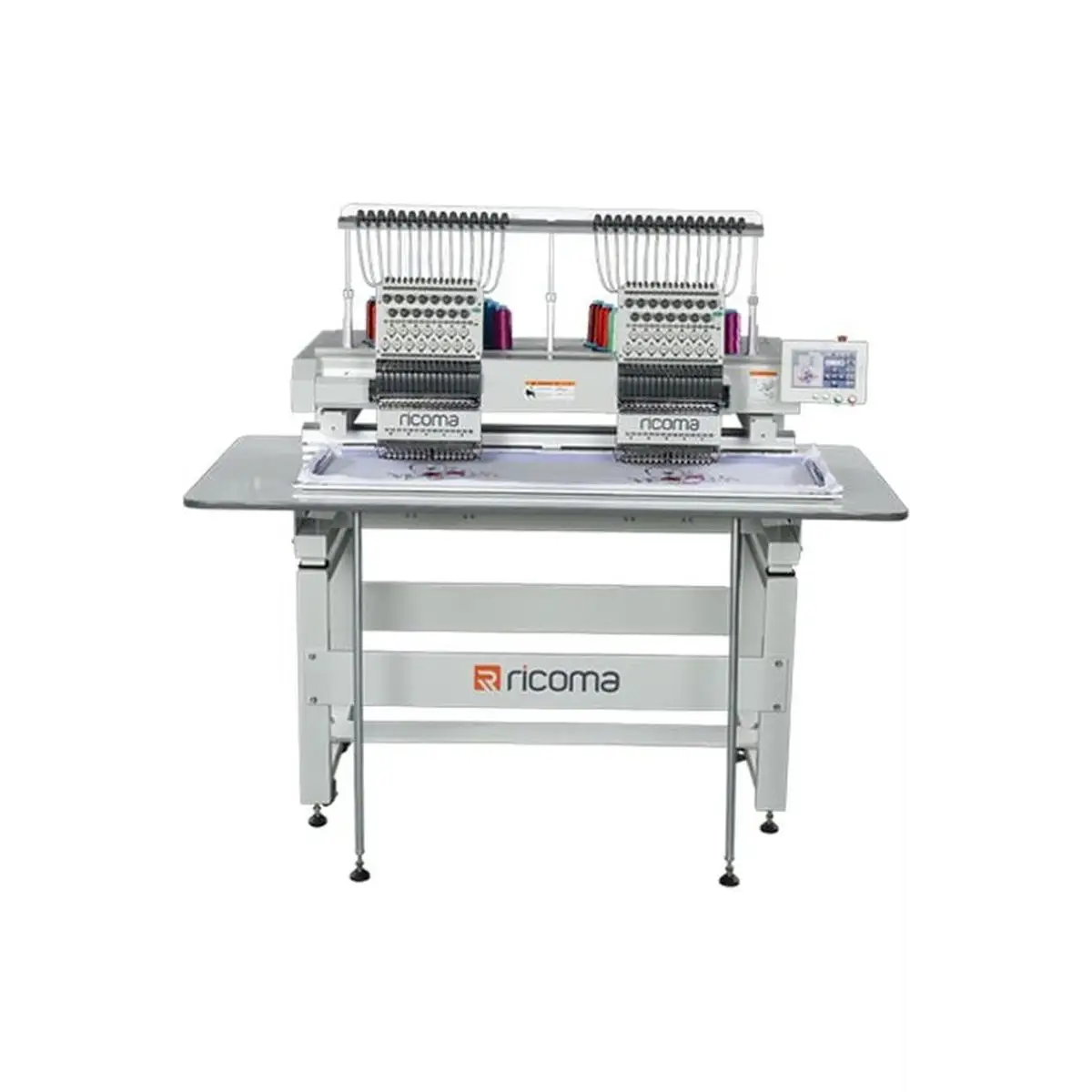

7. Sash Frame: 500 x 360 mm (19.7 x 14.2 in)
MT-1502-7S
15
24
2
20 million stitches / 200 designs memory capacity
High-Definition True-Color 7" LCD Touch Screen
500 x 360 mm (19.7 x 14.2 in)
1000 sti/min
1430mm L x 770mm W x 780mm H (56.3in L x 30.3in W x 30.7in H) - without stand
190 kgs (418.9 lbs)
330 kgs (727.5 lbs)
MT-1502-7S
15
24
2
20 million stitches / 200 designs memory capacity
High-Definition True-Color 7" LCD Touch Screen
500 x 360 mm (19.7 x 14.2 in)
1000 sti/min
1430mm L x 770mm W x 780mm H (56.3in L x 30.3in W x 30.7in H) - without stand
190 kgs (418.9 lbs)
330 kgs (727.5 lbs)
