Model

SWD-1501-8S
Ricoma SWD-1501-8s
Ricoma SWD-1501-8s
Ricoma SWD-1501-8s
Ricoma SWD-1501-8s
Ricoma SWD-1501-8s
Ricoma SWD-1501-8s
Ricoma SWD-1501-8s
Ricoma SWD-1501-8s

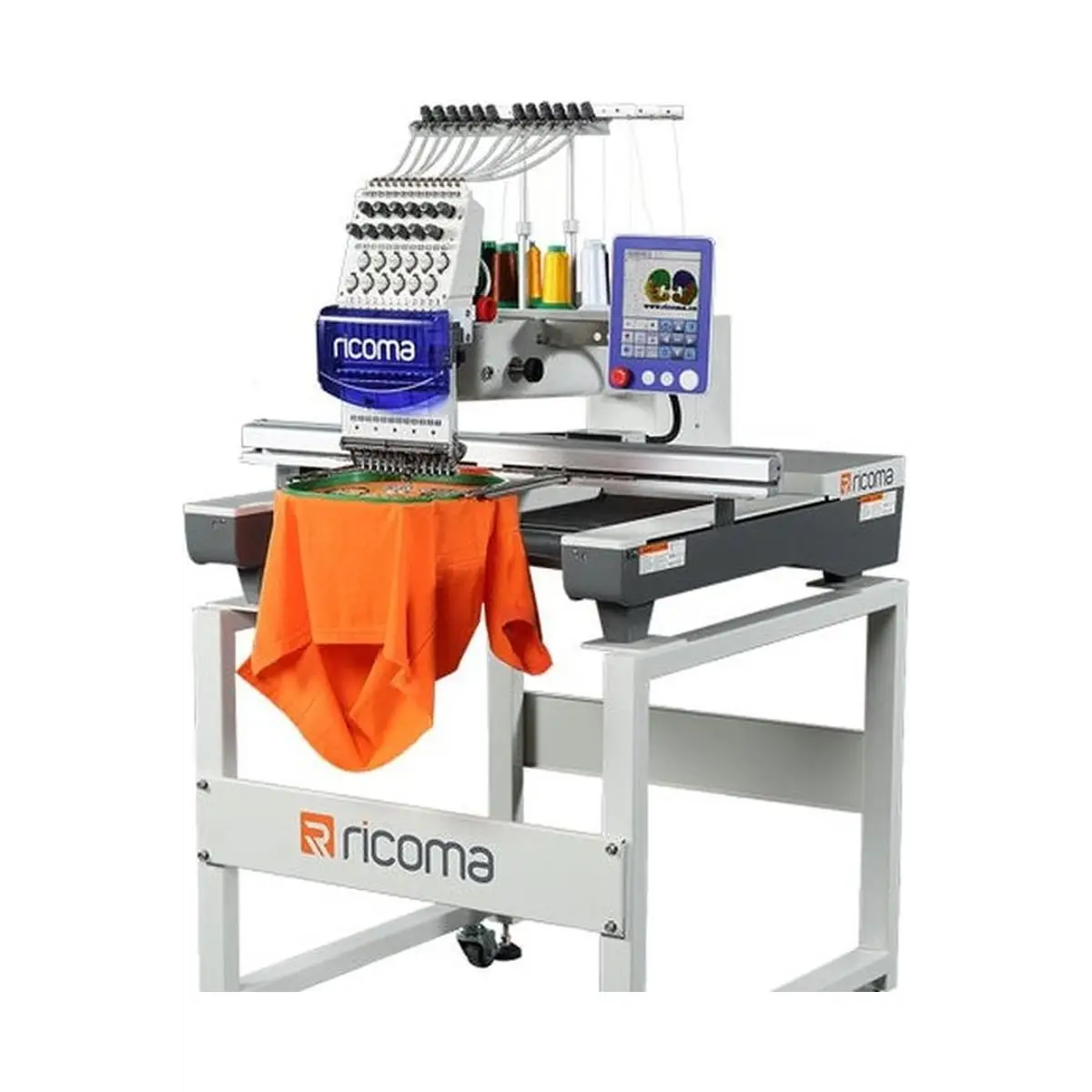

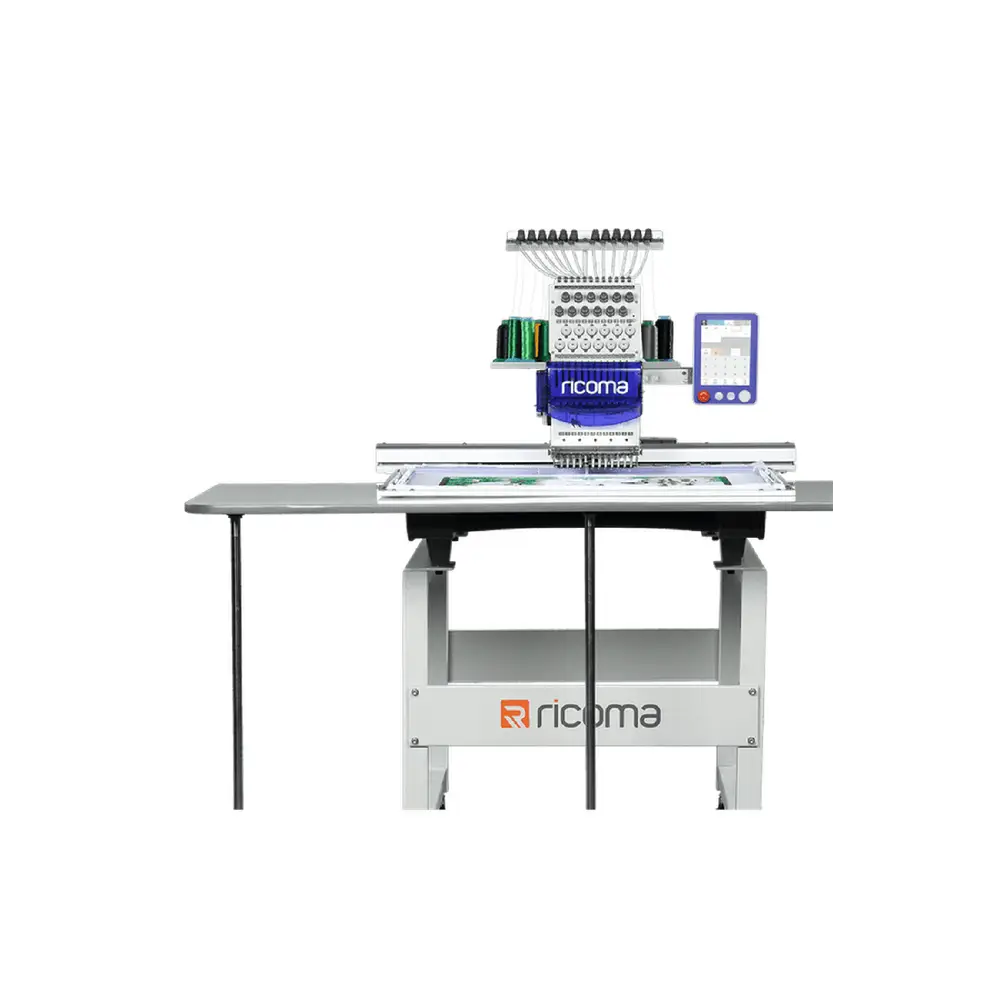

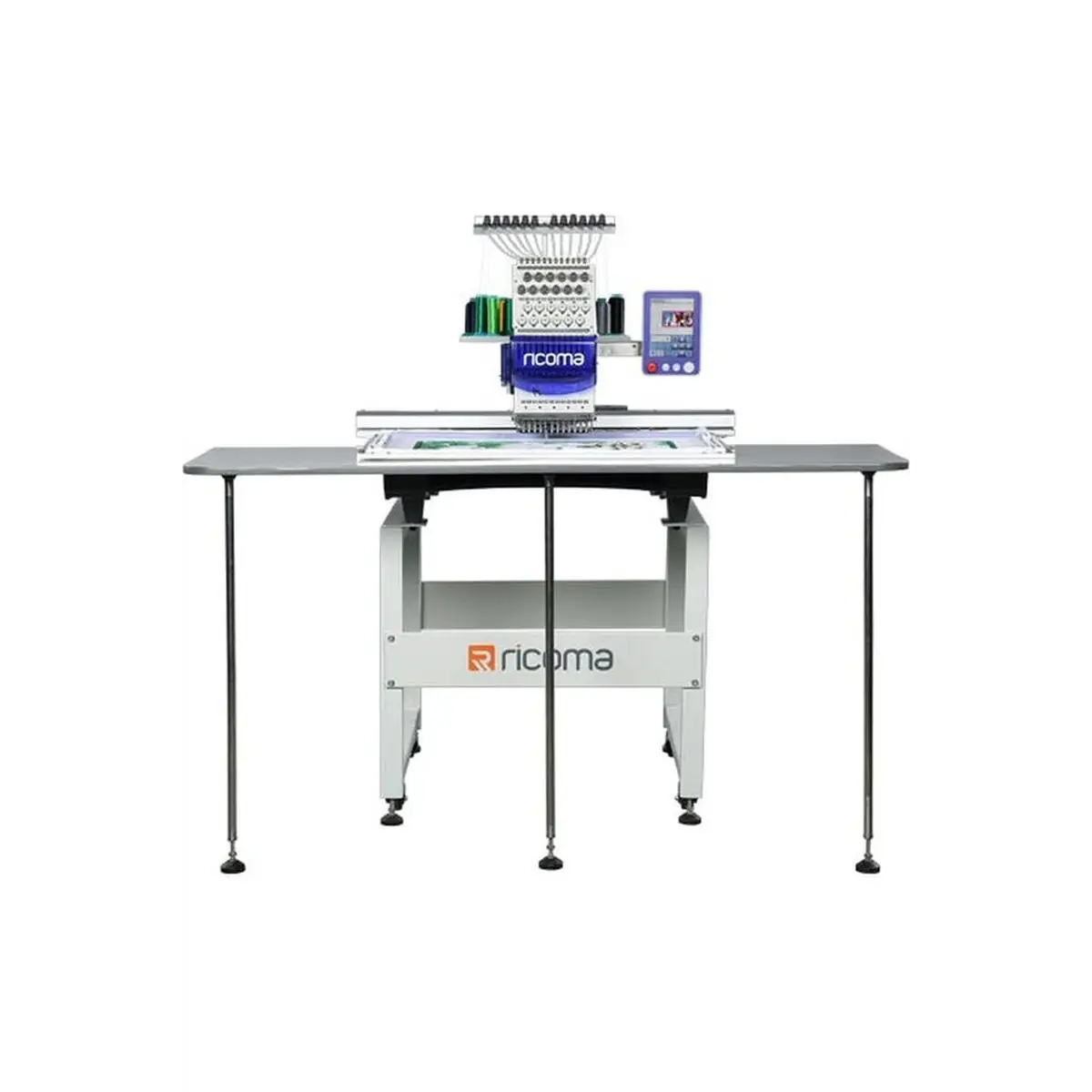

Ricoma SWD-1501-8S Single-Head Commercial embroidery machine

Ricoma
$21,999.00
$21,999.00
$21,999.00
Save $0.00

Does Not Qualify for Free Shipping

Disclaimer: Due to the weight of the machine, table and motor, there may be some minor marring or scratches due to shipping.

Some machines may be subject to additional shipping fees due to customer's location.

Table tops may differ from those shown. Unassembled Machines may have a staggered delivery.

PRODUCT FEATURES

SWD-1501-8s

With wide overhead room and a small sewing arm, the SWD Series is perfect for embroidery on both bulky and small items. Go above and beyond with our extra-wide SWD embroidery machine. With the largest embroidery area in the industry, this 15-needle commercial embroidery machine is perfect for embroidery on large items like bags, jackets and tablecloths, as well as regular items like polos and caps.

Main Features

Suitable for embroidery on flats, caps, finished garments and more!

Perfect for embroidery on large items

High defnition true color 8-inch LCD touch screen

Maximum embroidery area: 800 mm x 500 mm, or 32”x 20”

Heavy duty steel stand with wheels to ensure stability and mobility

Memory capacity: 20 million stitches or 200 designs

Machine reads multiple design formats such as DST, DSB and more

270° wide angle cap system

USB input or direct transmission from PC via LAN port or wireless

Networkable and Wi-Fi capable

Servo motor 150 W – lowest power consumption in the industry!

Built-in universal power supply 110V/60Hz and 200V/50Hz (self-adaptable worldwide)

DC36V micro-step motor for X & Y axis driving to ensure low noise and less vibration

Emergency stop button

Thread Break Detection

Two recessed USB ports to protect USB flash drive

Optional laser tracing device available

Automatic memory retention

Multiple hoop sizes for a variety of embroidery needs

Easily apply appliqué, sequin, boring or cording

Automatic thread trimmer

Built-in levers for easy machine installment

Environmentally friendly packaging

Display Features

User-friendly interface

New ergonomic touch screen allows for easy and comfortable operation with right-hand thumb

Preset hoop parameters designed to avoid hitting hoops

Multi-angle, rotatable and adjustable control panel bracket allows for better visibility

Pre-sew design trace capable

Automatic color change

Optional camera positioning device

Built-in file folder management

Screenshot function

3D design view for better visibility

Built-in button from 172° to 196° under manual color change mode, a great help for machine maintenance

Machine parameters can be exported and imported for easy maintenance

One-step tracing key directly on the main screen

External 100° button and trimming button

Laser pointer is activated when tracing design

New mode for needle path calculation, optimizing embroidery quality

Front LED lamp provides better visibility and protection for eyes against strong light during threading

Multiple languages: English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, German, Russian, Vietnamese, Thai, Arabic and more

Built-in factory mode, standardizing outgoing quality control process

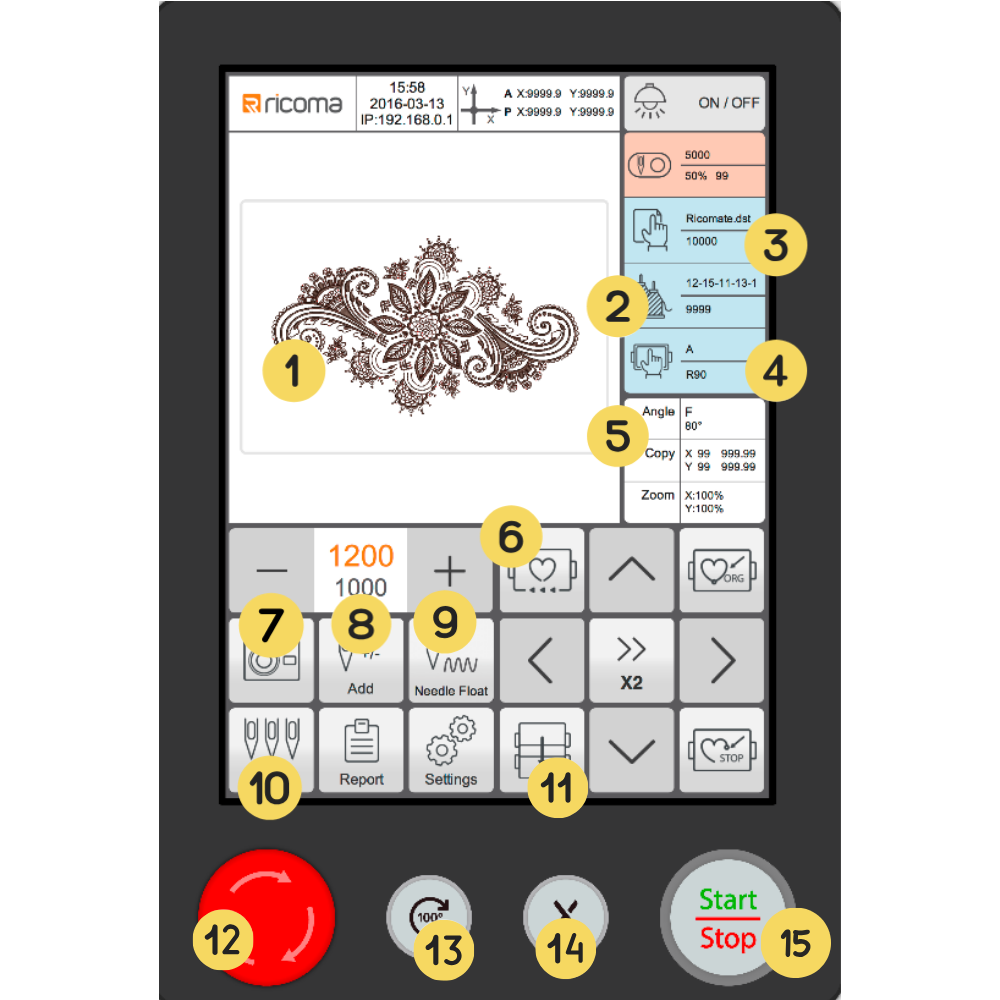

The Panel

1. Design Preview Screen

In this small preview screen, you can see the design you're embroidering and how far along you are in the embroidery process.

2. Colour Sequence Menu

Display and program color sequence settings.

3. Design Menu

Create on-board letting and import and view designs on the USB and machine’s memory.

4. Preset Hoops

Displays and programs the machine’s preset hoops.

5. Design Settings

Repeat designs and edit settings like size and rotation angle with the design settings menu.

6. Trace Design Key

Use this key to trace the design’s start and end point. This will help you select your design’s placement and determine if your needle will come into contact with the hoop at any point during the embroidery process.

7. Camera

This optional function allows you to center the design once it has been hooped.

8. Stitch Mode

View the machine’s status, and rewind or fast forward the design in low or high speeds.

9. Float

Rewind or fast forward your design by stitch count.

10. Needle Icon

Manually switch needles with the needle icon. This icon also displays the current needle position and degree settings on the machine. The left side displays the current needle position and the right side displays the degree the machine is aligned to.

11. Frame Out Key

The frame out key brings your hoop forward during the embroidery process for simple one-step appliqué.

12. Emergency Stop Button

In case of an emergency, press the emergency stop button located on bottom left side of the panel. This will stop the machine.

13. 100 Degree Key

This key automates the process of aligning the machine to 100 degrees. In order to use the machine, it must be aligned to 100 degrees.

14. Manual Trimming Key

Use this key to perform trimming during operation status and preparation status.

15. Start/Stop Button

Use these buttons to start or stop the embroidery process. If you need to stop embroidering at any time during the process, click the Stop button to make the machine stop.

Creativity at your fingertips

If you can hoop it, you can embroider it. Check out just some of the many projects created with the SWD-1501-8S embroidery machine.

WHAT'S INCLUDED

A Variety of Hoop Sizes

1. Hoop A Round (x2): 90 x 90 mm (3.5 x 3.5 in)

2. Hoop B Round (x2): 120 x 120 mm (4.7 x 4.7 in)

3. Hoop C Round (x2): 150 x 150 mm (5.9 x 5.9 in)

4. Hoop D Round (x2): 190 x 190 mm (7.5 x 7.5 in)

5. Hoop E Square (x1): 290 x 290 mm (11.4 x 11.4 in)

6. Hoop F Oval (x1): 540 x 360 mm (21.3 x 14.2 in)

7. Sash Frame: 500 x 360 mm (19.7 x 14.2 in)

A Heavy-Duty Steel Stand

Each SWD machine includes a heavy-duty steel stand to support the machine. The stand’s wheels assist with mobility and portability, while the base gives stability for precise embroidery. Each stand includes a convenient table for storing hoops and materials.

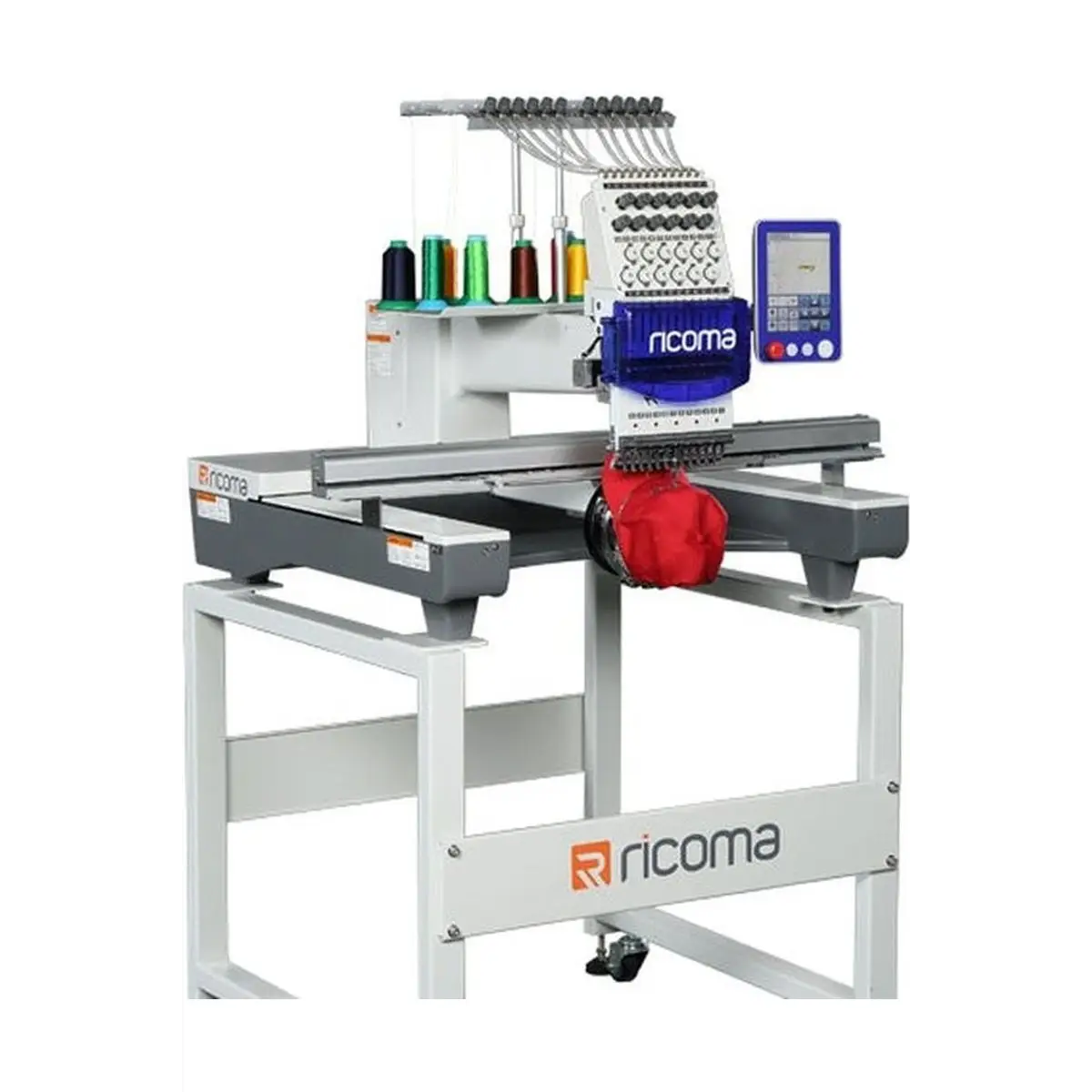

Cap Attachments for Cap Embroidery

The SWD machine comes with two cap rings, a cap driver and a hoop station. Start hooping and embroidering caps as soon as you receive your machine!

A Starter Kit Filled with Supplies

Each machine includes a starter kit complete with enough stabilizer, bobbin, thread and needles to get you started on your first few orders. The contents of the starter kit varies.

Chroma Digitizing Software

Start learning how to digitize your embroidery projects with Ricoma's proprietary digitizing software, Chroma. You'll receive Chroma Inspire, the software's basic version that allows you to edit and create simple embroidery designs, in your embroidery machine package.

Five-Year Limited Software

Each Ricoma embroidery machine is backed by a five-year limited warranty, in the rare case any parts need replacement. Enjoy peace of mind for five years knowing you're covered by the industry's best warranty.

Hands-On Training and Unlimited Technical Support

Each machine includes free hands-on training and support available at our location. Our technicians can help you via phone, email or webcam for the assistance of your machine!

3-Month Subscription to HoopMade

Each machine package includes the highest tier subscription to Ricoma's embroidery design library, HoopMade. Your subscription includes access to premium designs in multiple sizes, cap designs, 3D puff designs and patch designs.
Warranty

SPECIFICATIONS

Model

SWD-1501-8s

Needles

15/12

Number of Hoops

13

Number of Heads

1

Number of Stitches

20 million stitches or 200 designs memory capacity

Max Speed

1000 sti/min

Screen

High-Definition True-Color 8" LCD Touch Screen

Embroidery Area

800mm x 500mm [ 32” x 20” ]

Dimensions

L: 40” W: 36” H: 63”

Net Weight

185 kilograms [408 lbs]

Gross Weight

230 kilograms [507 lbs]

Model

SWD-1501-8s

Needles

15/12

Number of Hoops

13

Number of Heads

1

Number of Stitches

20 million stitches or 200 designs memory capacity

Max Speed

1000 sti/min

Screen

High-Definition True-Color 8" LCD Touch Screen

Embroidery Area

800mm x 500mm [ 32” x 20” ]

Dimensions

L: 40” W: 36” H: 63”

Net Weight

185 kilograms [408 lbs]

Gross Weight

230 kilograms [507 lbs]
